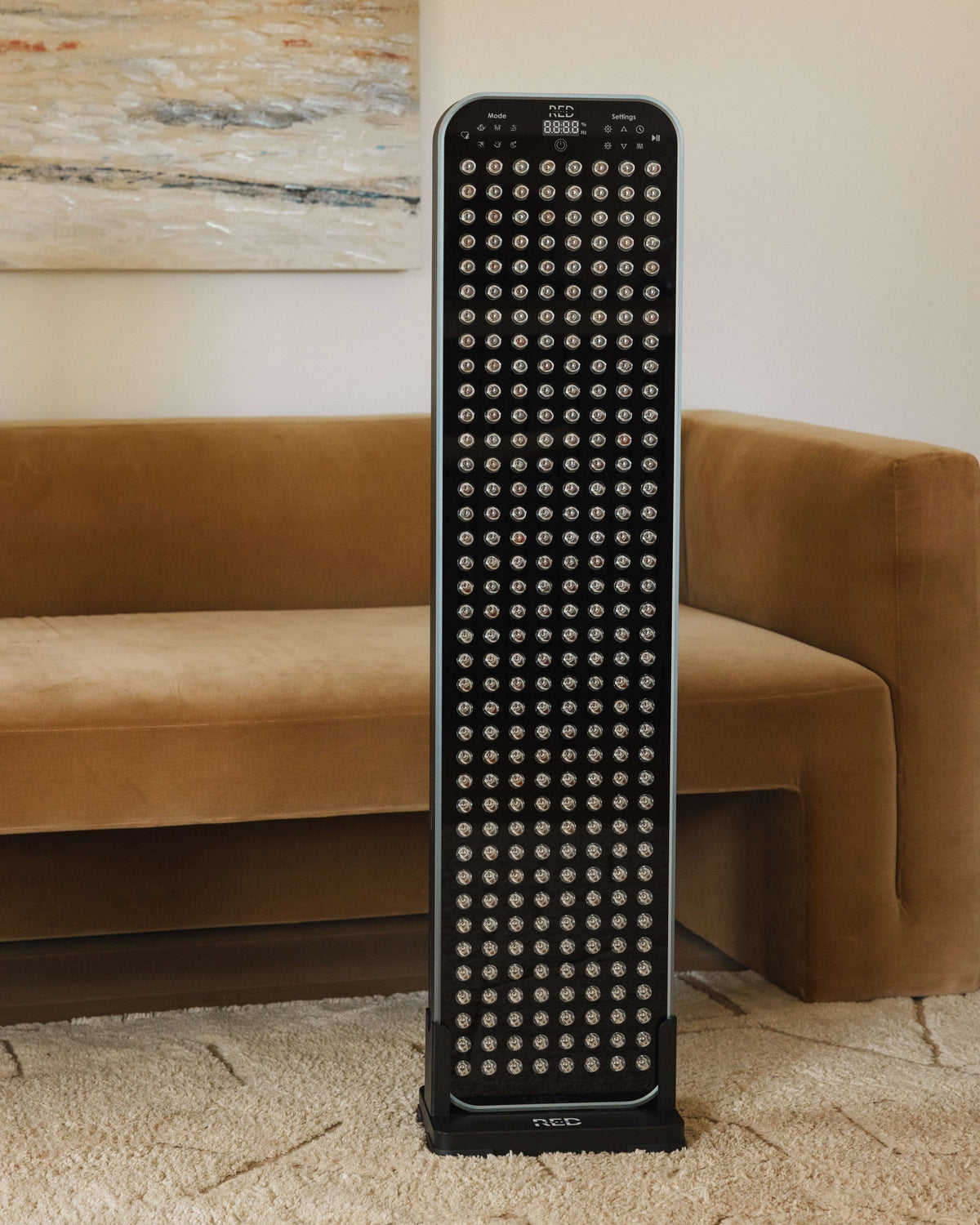

The Renew Red Light Large Panel is a 6-wavelength LED light therapy panel designed for multi-area home use. It delivers 610nm, 630nm, 660nm, 810nm, 830nm, and 850nm wavelengths through 304 five-watt LEDs at up to 1520W light output, with 7 preset modes, a custom mode, touch key and voice control, and a folding floor stand with wheels for repositioning around the home.
Why This LED Light Therapy Panel
Six wavelengths across two spectrums — three red wavelengths (610nm, 630nm, 660nm) and three near-infrared wavelengths (810nm, 830nm, 850nm) are delivered simultaneously through 304 LEDs with a 30-degree beam angle.
High irradiance output — 126 mW/cm² at 6 inches and 108 mW/cm² at 12 inches, measured by spectrometer.
Seven preset modes plus custom mode — presets include Muscle Recovery, Sleep Optimization, Skin Care, Fitness, Fat Burning, Pain Relief, and Joint Health; custom mode allows independent control of red and near-infrared intensity, pulse value, and session time.
Pulsing up to 9,999 Hz — adjustable pulse frequency from 0 to 9,999 Hz.
Touch key and voice control — dual input options for session management.
Long LED lifespan — rated over 100,000 hours; low EMF, no flicker.
Key Features
- Wavelengths — 610nm, 630nm, 660nm (red); 810nm, 830nm, 850nm (near-infrared)
- LEDs — 304 × 5W 3535 LEDs with ceramic substrate
- LED density — ~42% 660nm, ~42% 850nm, ~5% 630nm, ~5% 830nm, ~3% 610nm, ~3% 810nm
- Light output — up to 1520W
- Irradiance — 150 mW/cm² at 3 in, 126 mW/cm² at 6 in, 108 mW/cm² at 12 in
- Beam angle — 30 degrees
- Preset modes — 7 presets + custom mode
- Pulsing — 0 to 9,999 Hz

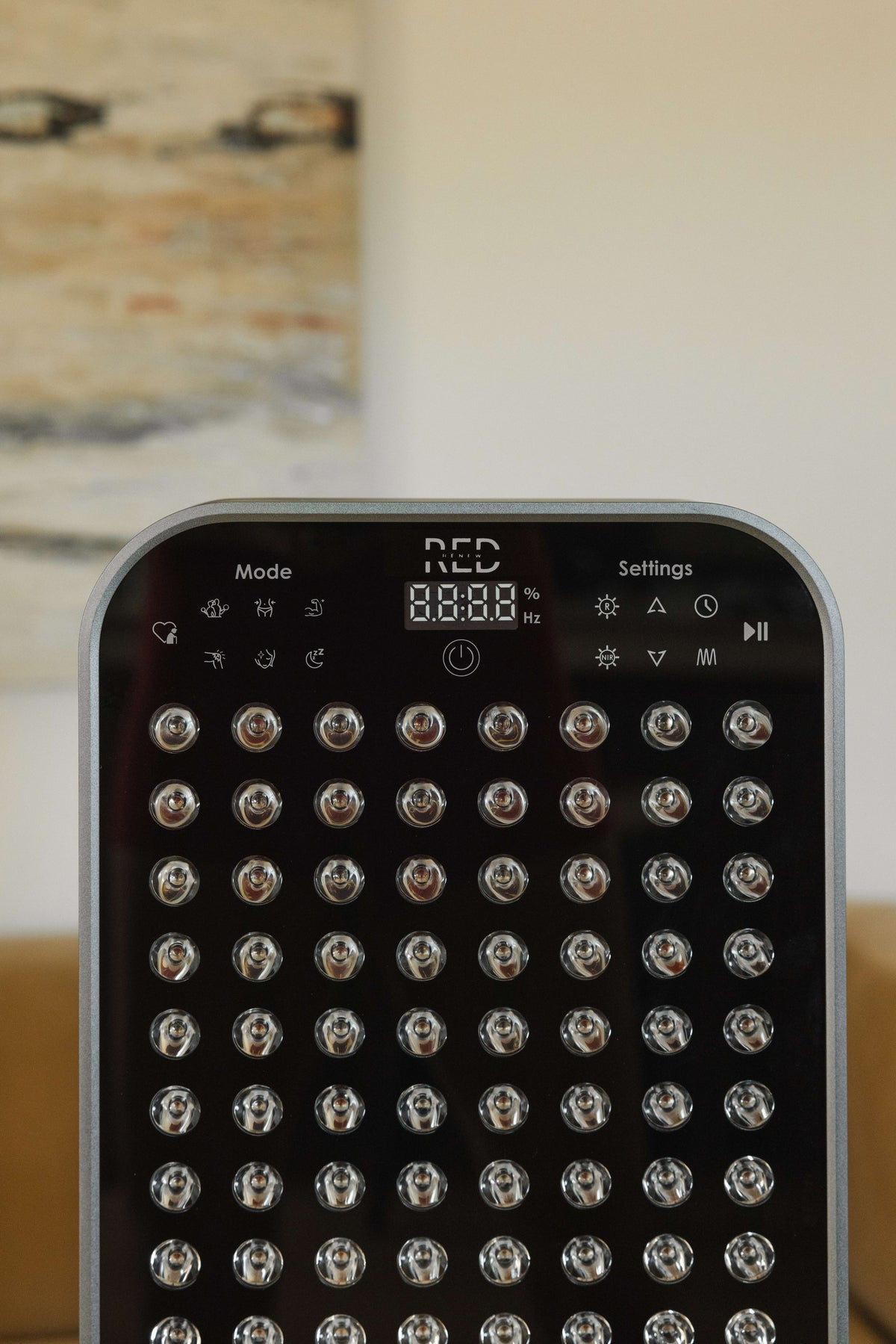

- Controls — touch key and voice control
- Shell material — aluminum
- LED lifespan — over 100,000 hours
- EMF — low EMF, no flicker
Specifications
| Spec | Value |
|---|---|
| Brand | Renew Red Light |
| Model | The Large Panel |
| Wavelengths | 610nm, 630nm, 660nm, 810nm, 830nm, 850nm |
| Number of LEDs | 304 |
| LED type | 5W 3535 ceramic substrate |
| Light output | Up to 1520W |
| Power consumption | 1500VA |
| Input voltage | AC 100–240V |
| Irradiance at 3 in | 150 mW/cm² |
| Irradiance at 6 in | 126 mW/cm² |
| Irradiance at 12 in | 108 mW/cm² |
| Beam angle | 30 degrees |
| Preset modes | 7 presets + custom mode |
| Pulsing | 0–9,999 Hz |
| Controls | Touch key, voice control |
| Shell material | Aluminum |
| LED lifespan | Over 100,000 hours |
| EMF | Low EMF, no flicker |
| Dimensions | 43 in tall × 10.2 in wide × 2.4 in deep |
| Weight | 27.8 lb |
| Warranty | 3-year manufacturer warranty with free replacement |
| SKU | 305284 |
What's Included
- 1 x The Large Panel
- 1 x Folding floor stand with wheels
- 1 x Protective glasses (UV400)
- 1 x Power cable
- 1 x User manual
How to Use
Position the treatment area 6 to 12 inches from the panel for optimal light penetration. Sessions of 10–20 minutes, 3–5 times per week are suggested in the product documentation. Wear the included UV400 protective glasses during each session. Review the full contraindications list in the user manual before use. Consult a healthcare provider if you have any medical concerns or pre-existing conditions prior to beginning light therapy.
Shipping and Returns
Shipping: Free standard shipping to the continental U.S. (Alaska and Hawaii excluded). Estimated delivery: 6–11 business days (1–3 business days handling plus 5–8 business days transit). Tracking and insurance included. Each panel ships individually due to its size and fragile nature.
Returns: 30-day return window from delivery. Damage must be reported within 48 hours of delivery. Customer is responsible for return shipping costs unless the item arrives defective or damaged. A 25% restocking fee applies to approved returns; exchanges for the same item waive the restocking fee. See our Refund Policy for full details.
Warranty: The Large Panel includes a 3-year manufacturer warranty against defects in materials and workmanship, with free replacement. Replacement units are warranted for 6 months. Contact Golden Sage Wellness at support@goldensagewellness.com to initiate a warranty claim.
Common Questions
What wavelengths does The Large Panel use?
The Renew Red Light Large Panel uses six wavelengths: 610nm, 630nm, and 660nm red light, and 810nm, 830nm, and 850nm near-infrared light, delivered through 304 five-watt LEDs.
How far should I position myself from The Large Panel?
The product documentation recommends positioning the treatment area 6 to 12 inches from the panel. Irradiance is 126 mW/cm² at 6 inches and 108 mW/cm² at 12 inches.
Does The Large Panel include a stand?
Yes. A folding floor stand with small wheels is included, allowing the panel to be repositioned around the home without lifting.
What preset modes are available?
The Large Panel includes 7 preset modes: Muscle Recovery, Sleep Optimization, Skin Care, Fitness, Fat Burning, Pain Relief, and Joint Health. A custom mode allows independent control of red and near-infrared intensity, pulse frequency, and session duration.
What is the return policy for The Large Panel?
Golden Sage Wellness accepts returns within 30 days of delivery. Damage must be reported within 48 hours of delivery. A 25% restocking fee applies to approved returns. The customer is responsible for return shipping unless the item arrived defective or damaged. See our Refund Policy for complete terms.
